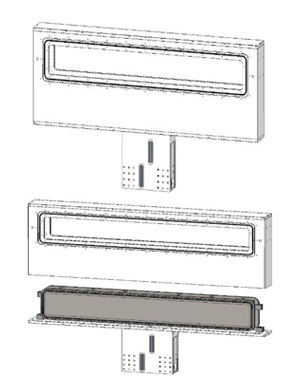

Vacuum Gate Valve Design & Concept : Custom Order |
|
| Product Info |
- Opening Size : 195 x 1,200 mm (H x W) - Leak Rate : < 1.0 x 10-8 Pa.m3/s - Closing(Opening) Time : ≤ 4 sec - Differentail Pressure(@ Opening) : ≤ 5 mbar - Differentail Pressure on Valve Body and Gates, in Closing Direction : ≤ 1 bar - Pneumatic Actuator : ≥ 5 bar / 2ea - Weight : ~ 270 kg - Option : Grounding of Gate, Sealing Material, Surface Treatment - Twin Gate : T-Motion (Vetical Up Close & Horizontal Extend Seal) |
